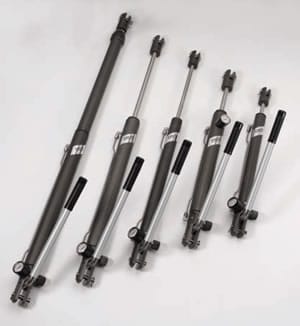

Hydraulic Integral Adjusters

HydraulicIntegralAdjusterspdfSpecification Table

SAILTEC was one of the first companies to combine a hydraulic cylinder with a small hydraulic pump commonly known as an Integral.

For almost 30 years SAILTEC has manufactured and improved the Integral. This proven Integral hydraulic adjuster now features a low profile hydraulic pressure gauge mounted at top of cylinder tube. The top mount location allows easier gauge reading and low profile provides secure and snag-free operation.

SAILTEC has also modified the design of the pump lever and handle on the integral adjuster. This new design provides a more compact dimension to the integral assembly and enhances product appearance with 316 stainless steel handle and new textured all-weather handgrip (Kung Foo Grip).

Integral Attributes

Larger diameter piston rod

  • Resists side load deflection
  • Distributes seal contact for longer life

Double Rod Seals Guides

  • Clean, scrape and seal piston rod for longer, leak free service life
  • Sizes from -08 to -30 are produced and stocked in various stroke lengths: 226mm/8.9” to 421mm/16.5”
  • 250 MM (9.8” – 10.5”) are specifically made to replace older Navtec integrals without modifying the backstay length)
  • Custom lengths and strokes are common

Demand for variety

  • We have never attempted cost cuts by reducing rod diameter, installing low quality seals or using inferior finishes
  • Available in black hard-coat, clear anodize or T316 SS w/#4 polish.

Proven Design – available since 1983

  • We have never attempted cost cuts by reducing rod diameter, installing low quality seals or using inferior finishes
  • Available in black hard-coat, clear anodize or T316 SS w/#4 polish.

Specialized and Focused

  • Developing and manufacturing high quality marine hydraulic systems is our sole purpose at SAILTEC.

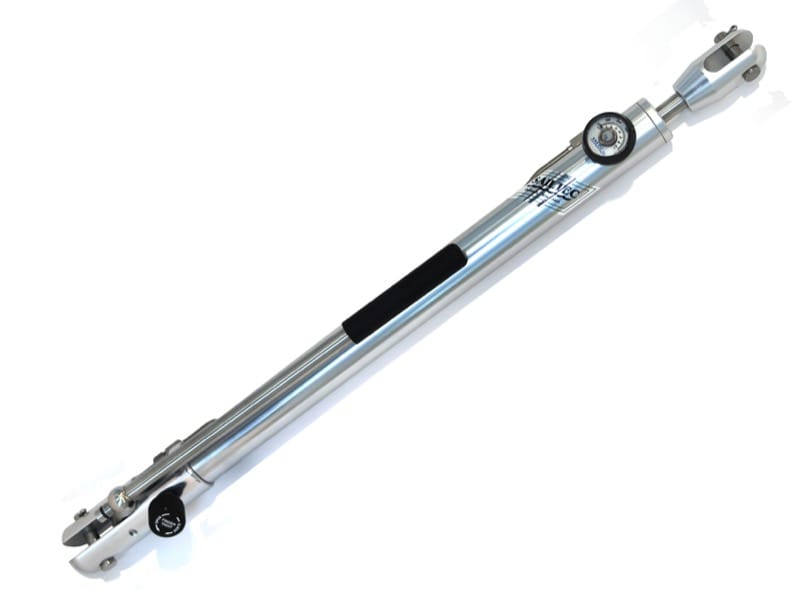

Integral Clear 2013 SAILTEC (3)

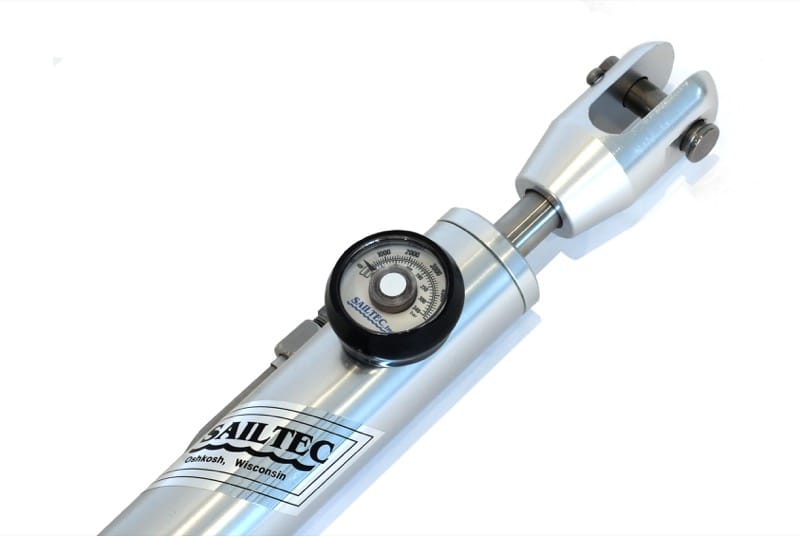

Integral Clear 2013 SAILTEC 1

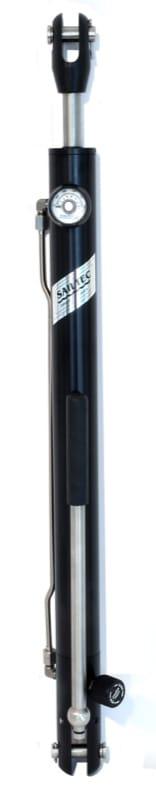

integral

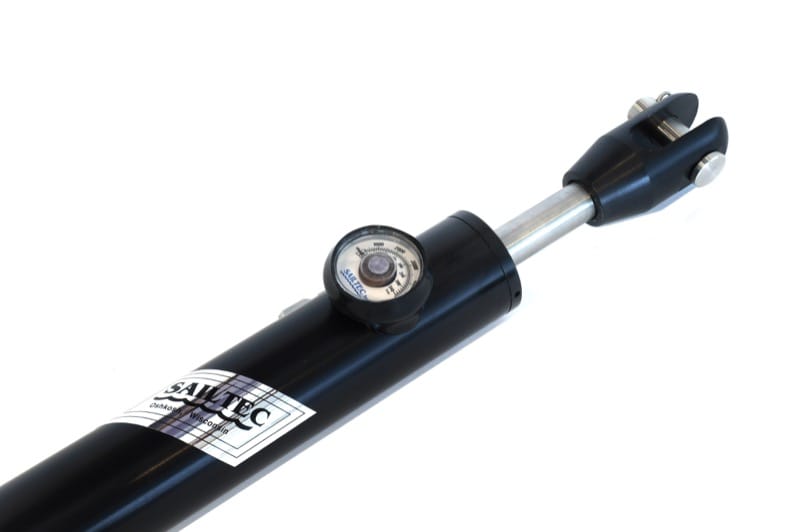

integral detail1

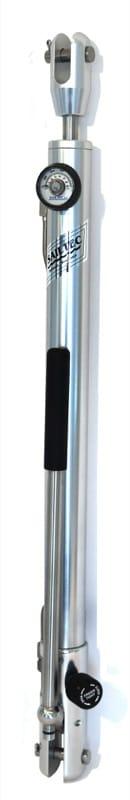

integral silver
